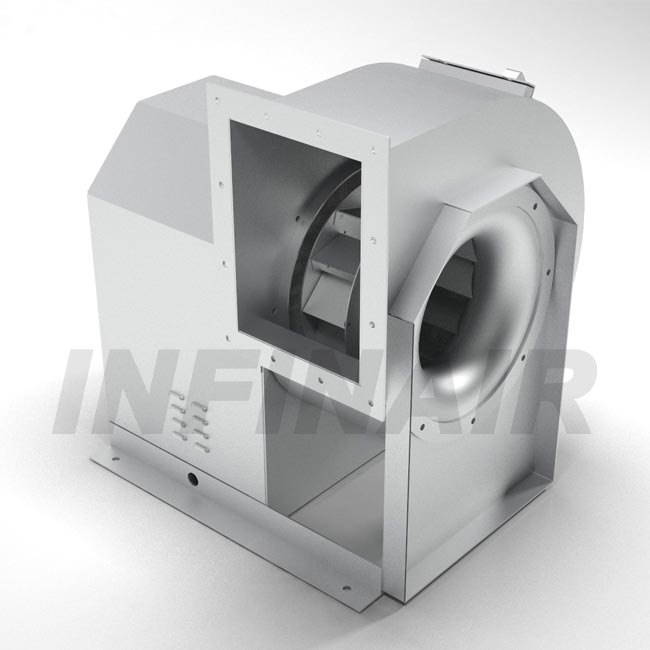

Centrifugal Utility Set - CUS
Airflow Range: 500～56,000 m³/h (294～32,941CFM)
Static Pressure Range: 136～1,400 Pa (0.55～5.62 in.WG.)
Drive Type: Belt/ Direct drive
Mounting Types: Base Mount/ Ceiling Hung
Applications: Industrial ventilation / Explosion proof air exhaust / Kitchen fume exhaust
For reference only. Please contact our sales rep for detailed performance fan curve. Thank you.
Wheel
- Highlights of the 4 Generation of Wind-Surfer wheel
-
- -- Excellent sound and air performance
- -- Wide performance range of high efficiency and non-overload
- -- The balance quality grade as high as G2.5 (Just G6.3 for general products)
-
- Air Performance Design
-
- -- Optimized design through CFD flow field simulation and repeated tests
- -- Wheel cone and inlet cone in conformity with flow field characteristics
- -- Flow passages control: airflow regulated well through precise synergy
- -- Optimized mounting angle for blades
-
- Structural Design
-
- -- Stress analysis by FEA method for better performance
- -- Various additional strengthening for different specificationsfor greater reliability
- -- Riveting technology used to avoid stress
-
- Wheel Improved
-
- -- Continuous Improvement: upgraded to the 4th generation of wheel
- -- Compared with the 3rd generation: overall performance improved by 5-10 %
- -- Compared with the 3rd generation: overall sound level reduced by 2-3 dB(A)
-
- Advanced Process
-
- -- Wheel cone and inlet cone formed by spinning to ensure good air performance
- -- Inlet Cone: replacing the inlet bell to ensure smooth airflow
- -- Blades: formed by punching to ensure quality
- -- Tooling: dedicated fixtures to ensure the precise mounting position of blades
-
Feature
- Wide Performance Range
- -- Wheel Diameter: 300~ 1,000 mm
- -- Wide RPM and performance ranges offering more choices in model selection
- -- The number of turns adjustable, pulley and motor replaceable: performance range regulated for better adaptability
- Scroll Turned for Variable Discharge Directions at Jobsite
The scroll is fixed by 8 equally spaced bolts. Discharge directions can be adjusted at the jobsite within the allowable angle range.
-
AMCA Spark Resistant Construction Option
-
-- Supply Spark A and Spark B construction option according to AMCA99-10
-
-- Spark A: Housing is aluminum wheel and inlet cone are aluminum
- -- Spark B: Wheel and inlet cone are aluminum
- Continuously Welded Housing
- -- The continuously welded housing has sufficient structural rigidity
- -- It is more suitable for ventilation of moist air compared with scroll manufactured with lock seam
- -- The accumulated dropping liquid inside the scroll will not result in leakage
- -- It is suitable for exhausting air containing condensed water and kitchen fumes
- Easy Maintenance
- -- Access doors are available on both sides of the motor
- -- With one screw driver, the electrical components can be checked and repaired
- -- Scroll access door is provided as a standard accessory
- Suitable for outdoor installation
- -- Rain cover available to protect the whole drive unit
- -- Total protection from sunlight, rain and snow affecting rotating parts
- -- Fewer impacts from climate factors on the durability and safety of fans
- Compact Structure
- -- Belt drive: AMCA arrangement 10 (motor right under shaft); direct drive: AMCA arrangement 4
- -- The compact structural design reducing space
- -- Belt length reduced and belt life extended
- -- Low center height of scroll leaving more space for duct installation
- AMCA Seal: for Sound and Air Performance
-
- -- CUS fans certified by AMCA for Sound and Air Performance
- -- AMCA Seal for Sound and Air Performance tagged on CUS fans
-
Technical
-
- Quality Standards
- The SWSI centrifugal fans shall be tested and certified in accordance with AMCA Standard 210 & 300. AMCA Seal for
- Sound and Air Performance shall be tagged on each fan before leaving the factory. The manufacturer shall be certified
- by ISO 9001:2000.
- Fan Type
- The fan shall be direct or belt drive type, with an aluminum backward inclined centrifugal wheel. The inlet cone shall
- have a curved section to ensure smooth air movement. Each wheel shall be statically and dynamically balanced up to
- grade G 2.5 as per ISO 1940.
- Housing Material
- The fan housing shall be constructed of steel. It shall be thick and strong enough to support the drive mechanism and
- motor. The scroll shall be continuously welded. The fan surface shall go through the processes of alkaline wash and
- parkerizing and be finished with electrostatic epoxy coatings in black or other colors specified by customers.
- Drive Mechanism (For belt drive type only)
- Shaft: The shaft shall be heat treated through homogenizing furnace to the hardness level of HB370, and hard film
- shall be applied on the surface to avoid corrosion. It shall also be dynamically tested together with the wheel. The
- design speed of the shaft shall be at least 25% more than the maximum running speed of the fan.
- Pulleys: Fan pulleys shall be sized for a minimum of 150% of the driving power. Pulleys shall be cast iron, keyed and
- securely attached to the wheel and motor shaft. Pulleys shall also be adjustable on the jobsite. Conical type bushings
- shall be equipped for easy removal of the pulleys.
- Bearings: Two bearings shall be used to support the fan shaft to avoid vibrations directly coming onto the motor. The
- bearing L10 rating life shall be 80, 000 hours at the maximum operating speed specified in the catalog. The bearing
- shall be of permanently sealed type and metal pillow block ball bearing that can be lubricated.
- Drive Support: Drive mechanism shall be supported by heavy gauge steel sheet finished with powder coatings to
- avoid corrosion. The belt tension can be adjusted through the adjusting bolt at the motor base. The design shall make
- sure the fan shaft and motor shaft is always parallel.
- Protections: Standard belt drive CUS fans that include a shaft/bearing guard and belt guard are for indoor installation.
- For outdoor installation, there shall be a rain cover that offers total protection for the motor and other driving parts.
- Motor
- The motor shall be carefully matched to the fan load. It shall be IP54 rated with Class F Insulation. The motor bearing
- shall be of ball type that can be lubricated. Out of the air stream shall the motor and drive mechanism be located to
- avoid grease or dirt accumulation.
-
- Structure
-
- The fan shall include AMCA Type B spark resistant construction. Both the wheel and inlet shall be constructed of
- aluminum. Access door: An access door must be provided for the scroll to remove possible foreign bodies inside of
- the fan. The platform on which the fan is placed shall be a stable and level one and vibration isolators shall be used
- for connection. The pre-embedded fixing method shall not be required.
- Nameplate
- A permanently fixed aluminum nameplate shall clearly display the fan number, product model and serial number (a
- unique ID for each fan) so that the parts used can be traceable by customers.
- Qualified Suppliers
- INFINAIR or similar products supplied are designed based on Model CUS of INFINAIR.
