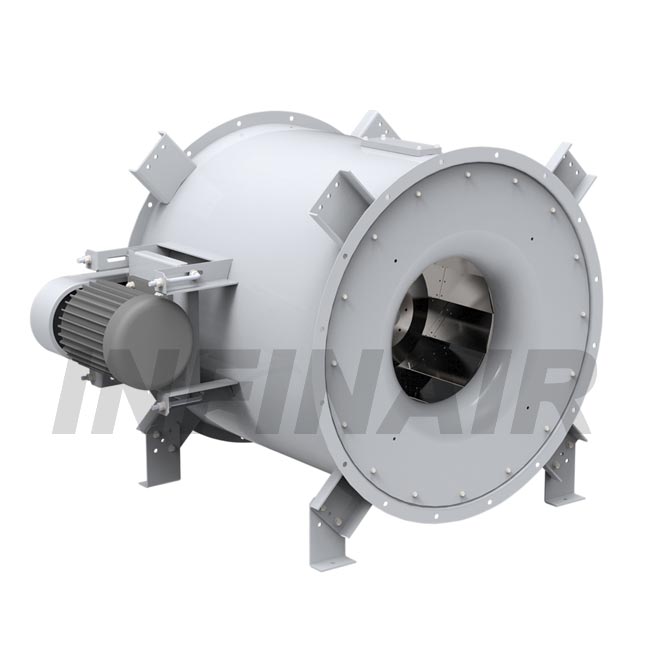

Inline Round Centrifugal Fan - YFICA
Airflow Capacity: 26,000 m³/h
Static Pressure Capacity: 1,000 Pa
Drive Configurations: Belt
Installation Methods: Ceiling Hung/ Base Mount
Applications: Ducted air exchange/ Kitchen fume exhaustion
For reference only. Please contact our sales rep for detailed performance fan curve. Thank you.
- Effect of the 4th generation Wind-SurferTM wheel series
- -- Excellent aerodynamic characteristics and noise characteristics.
- -- High-efficient area width without overloading.
- -- Balance quality grade up to G2.5(Typical products are balanced to G6.3 only).
- Advanced Design
- -- Optimized design of CFD flow field simulation，repeatedly validated.
- -- Front disc and inlet venture tube according with folw field characteristic.
- -- Flow passage control：matched each other to restrain the air flow better.
- -- Optimize the blade angles.
- Structure Performance Design
- -- Stress analysis of FEA to improve performance.
- -- Selected the strengthen structure according to different specifications to improve reliability.
- -- Using riveting technology to avoid stress.
- Improved Wheel
- -- Continues improvement：The wheel has the 4rd generation.
- -- Compared with the 2rd generation：Performance increased by 5-10% in the same parameters.
- -- Compared with the 2rd generation: Noise reduced 2-3 dB（A）in the same parameters.
- Advanced Process
- -- Inlet venture tube & Front disc：spun process to ensure streamlines aerodynamic characteristics.
- -- Inlet venture tube: replace bell mouth to ensure smooth air flow.
- -- Blades：once punch forming to ensure process quality.
- -- Tooling：dedicated fixture to ensure precise install of the blades.
- New structure design for kitchen exhaust (PL type only)
- -- Motor placed outside airflow, effectively avoid smoke pollution motors, along with good cooling effect and extend the service life of the motor.
- -- Sealed bearing shield set on shaft seal, which can effectively prevent contamination of the bearing gas fumes.
- -- The large access doors for easy removal, can impeller, main shaft and bearings as a whole for maintenance, and cleaning the impeller usually can be done by the access door as well.
- -- A sump is designed on the bottom of fan casing, for collecting oil flowing along the casing wall from the impeller to defend pipe pollution by oil. The sump is should be disassembled for regular cleaning. The sump should include an outfall for being collected with pipe to exhaust polluted water and oil.
- -- The fan casing set has a bearing leads to grease nipple, bearing grease filling is very convenient.
- -- According to the site installation conditions, allows the motor mounting position in 3 or 9 o’clock direction (facing the inlet), ease of installation and save space.
- High Efficiency and Low Noise
- -- Optimized design of CFD flow field simulation, repeatedly validated, to ensure compliance with the aerodynamic performance of flow field characteristics.
- -- Inlet venturi once spin forming, surface is smooth and streamline.
- -- Inlet venturi and front coil of wheel precise fit, excellent commutation effect, turbulence reduce, efficiency improved, noise reduced.
- Compact Structure and Convenient Installation
- -- Fan overall compact design, lift adjustable belt structure, small fan and saving installation space.
- -- Eight mounting supports are welded on cylinder uniformly. Can be selected a different installation method according to the site installation conditions and Convenient installation.
- High Reliable Design: Safe, stable and long life
- -- Fan adopts advanced FEA aided design, to improve the reliability of the structure.
- -- Fan shell continuous welded structure, high strength, no leakage, improve the safety of operation.
- -- Fan shaft are precisely turned, and the maximum load is 25% higher than that of the max RPM, which ensure the safety during long time continuously running.
- -- Sealed bearing lubrication, life of more than L10:80000 hours, to ensure the reliability of long-term continuous operation.
- -- Aluminum wheel and the inlet, to AMCA Standard Spark B grade explosion proof.
- -- Motor placed outside airflow, good radiating result and long life.
- Fan Type
The fan shall be direct drive and belt drive. Fan wheels are centrifugal, backward inclined, and constructed of aluminum. The inlet Venturi shall have round curved section to smoothly transit the air to the wheel cone. The wheel shall be statically and dynamically balanced to Level G2.5 as per AMCA 204 standard.
- Quality Standards
The fan shall be tested in accordance with AMCA Standard 210 and 300. The manufacturer must own the production license for industrial products and ISO9001 quality system authentication.
- Fan Housing
Fan housing shall be constructed of continuously welded cold rolled steel panel with epoxy surface, the flange shall be integrated machine shaping.
Fan surface shall be polished and cleaned up to remove particulates, welding slag, burrs, sharp edge, iron, oil, then epoxy coating [options: colour changes are available], fan surface shall be free of sags, wrinkle, blisters, exposed metal or peeling after coating.
- Belt Drive
Shaft: fan shaft shall be heat treated through soaking furnace to the hardness level of HB370, material is 40Cr, and the surface shall be hard film corrosion treated. The fan shaft shall be balanced together with the wheel. And the shaft design speed shall at least exceed 25% of the maximum fan operation speed.
Pulleys: fan pulleys shall be sized for a minimum of 150% of driven horsepower. Pulleys shall be of cast iron type, keyed and securely attached to the wheel and motor shafts. Motor pulleys shall be adjustable for final system balancing. Conical (DQ) type bushings shall be equipped for easy removal of the pulleys.
Bearings: bearings shall be selected for a minimum (L-10) life in excess of 80,000 hours at maximum cataloged operating speed. Bearing type shall be permanently sealed, re-lubricable pillow block metal ball bearing.
Drive support: drive assemblies shall be supported by heavy gauge powder coated steel, mounted on vibration isolators. The belt tension shall be adjusted through motor support plate, the design shall make sure the fan shaft and motor shaft is always parallel.
When mounting the fan, motor may be chosen to install up or down or left or right, depending on being convenient for your mounting. Eight mounting supports are welded on cylinder uniformly. Four mounting foots are fastened to mounting supports by bolt. It is optional for fan selecting suitable mounting method to reduce mounting cost and mounting space.
- Automatic kitchen grease (Only for kitchen exhaust type)
When mounting the fan, motor may be chosen to install left and right, for saving mounting space and being convenient for repair and maintenance. Eight mounting supports are welded on cylinder uniformly. Four mounting foots are fastened to mounting supports by bolt. It is optional for fan selecting suitable mounting method to reduce mounting cost and mounting space. Fan should be driven by belts, and the motor is set outside of airflow, ensuring efficient heat radiating. An access door should be designed on the fan casing, and the door is big enough for disassembling the impeller, main shaft and bearings as a whole for maintenance, and cleaning the impeller usually can be done by the access door as well. A sump is designed on the bottom of fan casing, for collecting oil flowing along the casing wall from the impeller to defend pipe pollution by oil. The sump should be disassembled for regular cleaning. The sump should include an outfall for being collected with pipe to exhaust polluted water and oil.
Motor shall be carefully matched to the fan load, IP54, and insulation class F. Motor bearings shall be re-lubricable ball type. Motor and drives shall be out of the air stream to avoid grease or dirt accumulation.
Permanently fixed aluminum nameplate shall be fixed on fan body clearly display fan mark, product model and serial number (i.e.: unique ID for each fan), so that the customer can use this number to find out the parts used.
