ATEX Certified Product
More Certifications

ATEX originates from the 2014/34/EU directive (Equipment for Explosive Atmospheres) in the EU CE certification system. When the hazard environment containing flammable gases or explosive dust, the regulations require the fans should not produce sparks, which may cause ignition and explosion. This type of fan is called an Explosion-Proof fan.

Inline Square Centrifugal Fan - YFISQ/ISQ

centrifugal fan

Airflow Range: 100 ~ 66,000 m³/h （59～38,824 CFM）

Static Pressure Range: 50～2,100 Pa （0.2～8.4 in.WG）

Drive Types: Direct drive

Mounting Types: Methods: Floor, Hanging, Duct mounted

Applications: Duct supply/exhaust,filter supply/exhaust,low noise cabinet,smoke removal

Certification: AMCA, TUV, CE, ATEX, CNEX, CCCF, EG

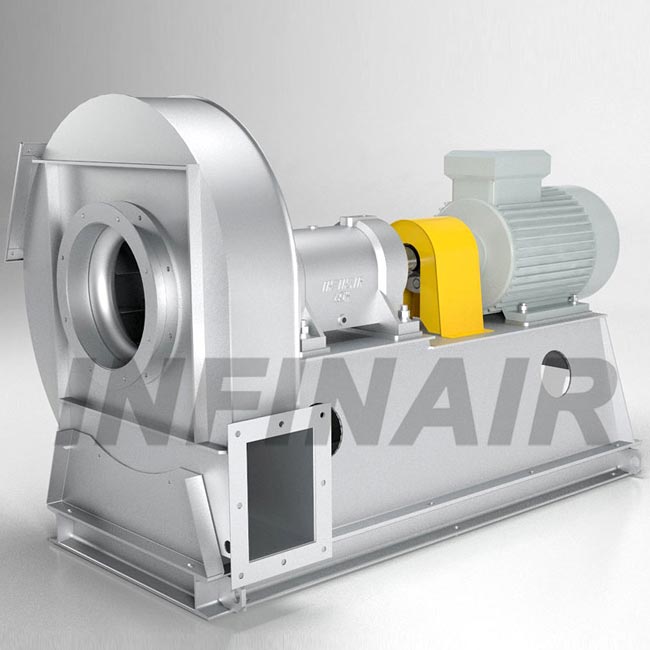

Backward Curved Centrifugal Fan - YFBCSL

shangtu 1

Airflow Range: 1,000～380,000 m³/h (588~223,529 CFM)

Static Pressure Range: 300～4,100 Pa (1.2~16.46 in.WG.)

Operating Temperature: -20～450 ℃

Drive Types: Direct/ Belt/ Coupling drive

Mounting Type: Base mounted

Applications: General air supply and exhaust/ Explosion-proof air supply and exhaust / Smoke removal

Certification: AMCA, ATEX, CNEX, CCCF, CE, EG

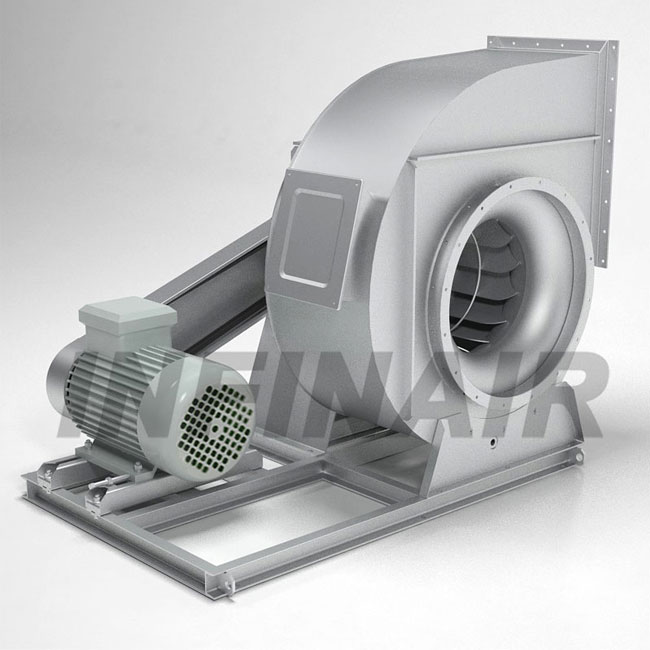

Backward Curved Centrifugal Fan - YFBCSK

Backward Curved SWSI Centrifugal Fan - Wheel Type K - YFBCSK

Airflow Range: 1,000 ~ 220,000 m³/h (588 ~ 129,412 CFM)

Total Pressure Range: 300 ~ 5,400 Pa (1.2 ~ 21.68 in.WG.)

Operating Temperature: -20～450 ℃

Drive Type: Direct/ Belt/ Axial

Installation Methods: Base Mount

Applications: Industrial/ Explosion Resistant

Certification: CE, ATEX, CNEX, EG

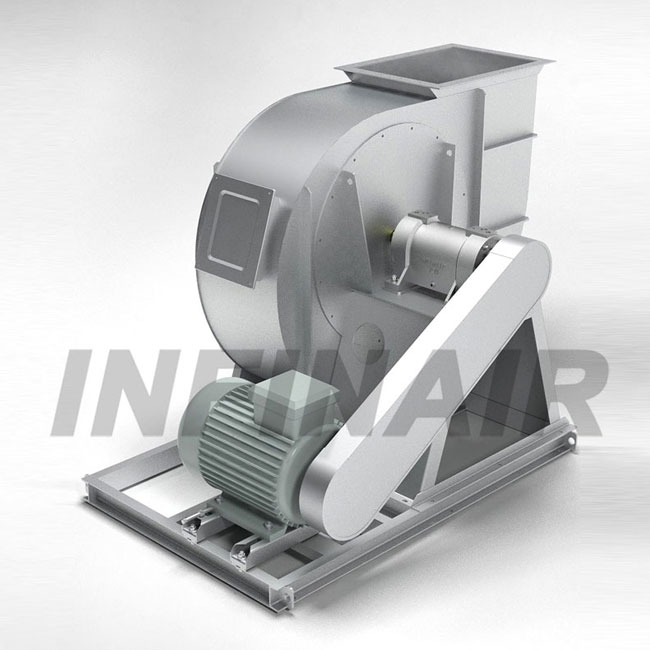

Backward Curved Centrifugal Fan - YFBCSO

s

Airflow Range: 1,500 ~ 201,000 m³/h (882 ~ 118,235 CFM)

Total Pressure Range: 475～10,900 Pa (1.91～43.76 in.WG.)

Operating Temperature: -20 ~ 450 ℃

Drive Type: Direct/ Belt/ Axial

Installation Methods: Base Mount

Applications: Industrial/ Explosion Resistant

Certification: CE, ATEX, CNEX, EG

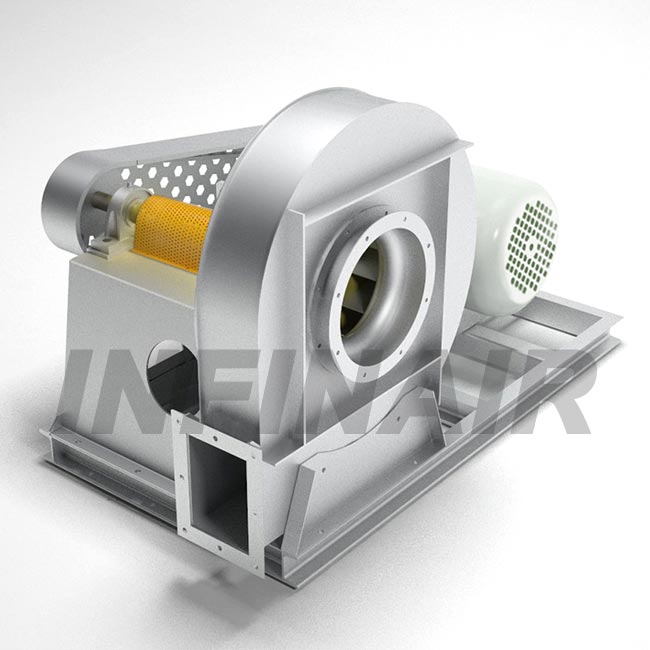

Backward Curved Centrifugal Fan - YFBCSR

11

Airflow Range: 1,000 ~ 266,000 m³/h (588~156,471 CFM)

Total Pressure Range: 500 ~ 7,400 Pa (2.01~29.71 in.WG.)

Operating Temperature: -20 ~ 450 ℃

Drive Configurations: Direct/ Belt/ Axial

Installation Methods: Base Mount

Applications: Industrial/ Explosion Resistant

Certifications: AMCA, CNEX, ATEX, CE, EG

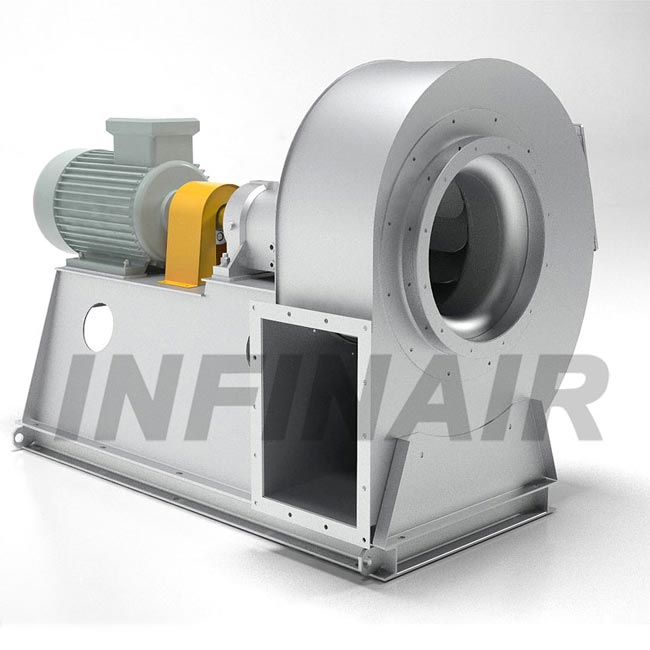

Backward Curved Centrifugal Fan - YFBCSG

sss

Airflow Range: 500 ~ 66,000 m³/h (294 ~38,824 CFM)

Total Pressure Range: 1,000 ~ 19,000 Pa (4.01 ~76.28 in.WG.)

Operating Temperature: -20 ~ 450 ℃

Drive Configurations: Direct/ Belt/ Axial

Installation Methods: Base Mount

Applications: Industrial/ Explosion Resistant

Certification: CE, ATEX, CNEX, EG

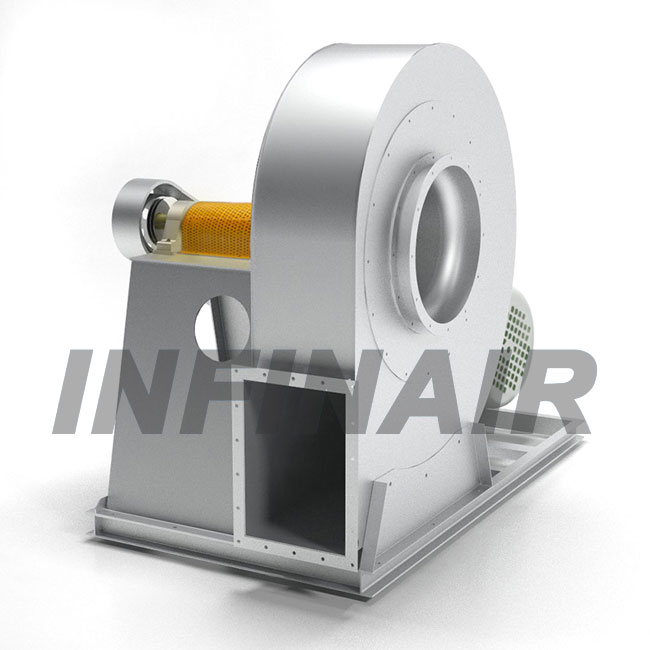

Backward Curved Centrifugal Fan - YFBCSU

ssss

Airflow Range: 500 ~ 125,000 m³/h (294 ~ 73,529 CFM )

Total Pressure Range: 300～11,500 Pa (1.2 ~ 46.17 in.WG.)

Operating Temperature: -20 ~ 450 ℃

Drive Type: Direct/ Belt/ Axial

Installation Methods: Base Mount

Applications: Industrial/ Explosion Resistant

Certification: CE, ATEX, CNEX, EG
